How to use the OBD Diagnostic Scanner to read your engine computer program!

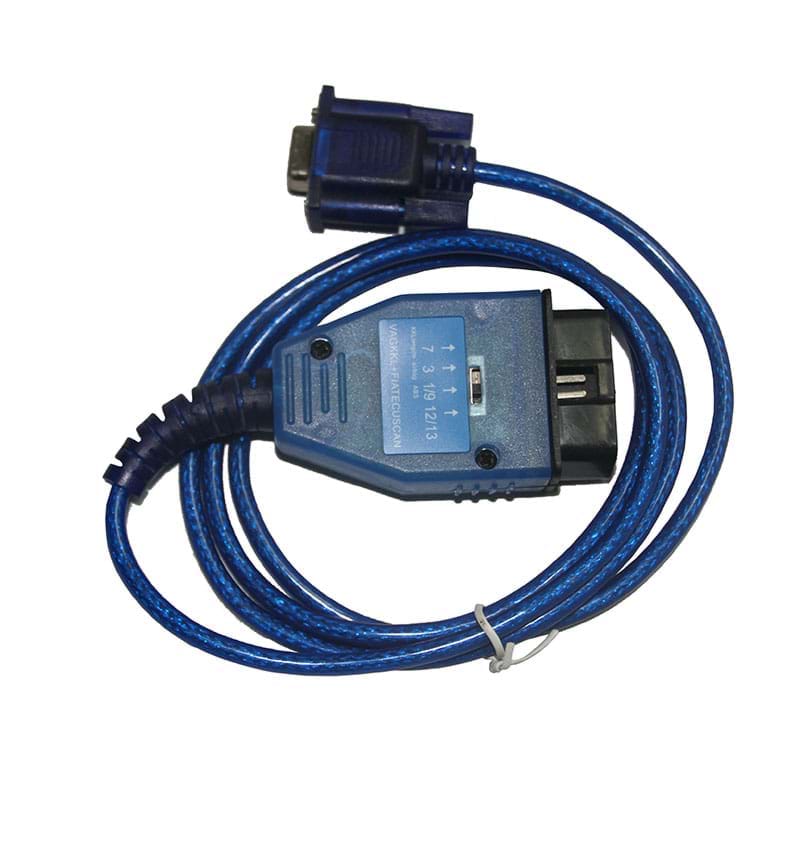

We can use the 5053 version of the 409 line VAG-KKL line(VAG KKL COM 409+ FIAT ECU Scan OBD Diagnostic Scanner), OBD line brush is the online interface computer program.

1.Computer line with the computer connection, is that we usually use the 5053 test car.

2.Download NETFMOTO computer program, according to the official description, the program readable can write mass Bosch Me7.5 computer system, I use the 5053 409 version VAG-KKL line(COM). Website said now standard 5053 line (direct) is can be used, but my 5053 line a few days ago to me broke,the next time i will try again.

3.Connection line, line driver installation, virtual serial port speed adjustment (see me another on Revo posts), although it is not clear that is sure to speed, but I think it is a good tune.

4 Open NEFMOTO, with SLOW connection, before I have been trying to FAST is not connected. The original NEFMOTO to be registered in order to use the FAST connection.

5.Connection, press KWP2000FLASHING. At that time I only know FLASHING is to write a program, think this key can only write, can't read, originally read program is here. According to the the key, two column, the column is you want to brush the program documentation, the next column is your IC engine number, only read, so the bar input computer program files, under column choose IC model 29F800BB.

6 After the choice, it wants you to determine

1)engine computer IC model is right

2)switch off the engine, the engine does not start.

7.According to OK, it appears to be read and write button can be read on the READ FLASH. FULL it began to read the engine, from 1% to 100%

8 After reading, it wants you to save the file, give it a file name.
