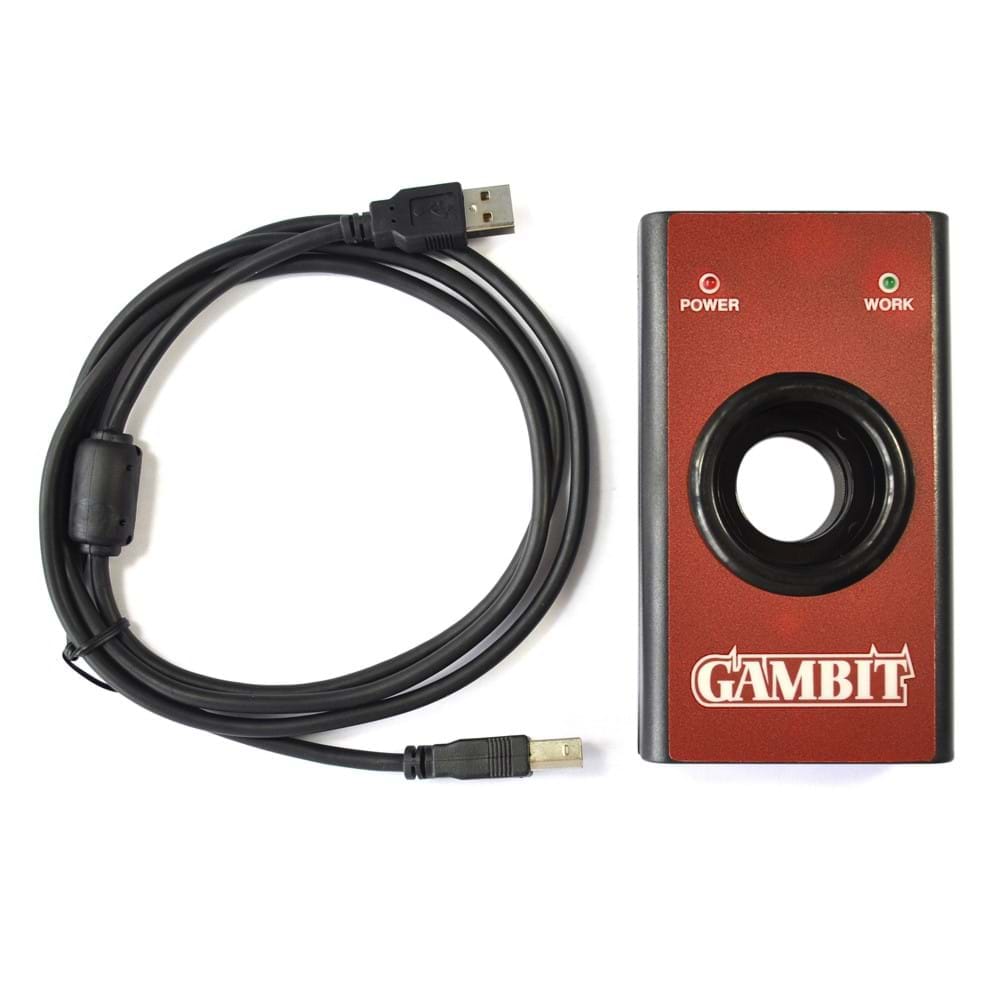

Gambit programmer CAR KEY MASTER II

  • CAR KEY MASTER II (Gambit programmer)is intended for RFID ( transponders ) programming.it is mainly produced for programming RFID transponders and generating RFID transponders from the immobilizer dump/eeprom of the car, in order to be able to start the vehicle.
  • Email:Sales@autodiagtech.com
  • Details

  • Contact Us

Gambit programmer CAR KEY MASTER II


CAR KEY MASTER II (Gambit programmer)is intended for RFID (transponders) programming.it is mainly produced for programming RFID transponders and generating RFID transponders from the immobilizer dump/eeprom of the car, in order to be able to start the vehicle.

Gambit programmer works with PCF7935, PCF 7936 and T5 transponders which are not precoded and are completely blank.


Supported transponders:

transponder type

Read

Write

PCF7930

YES

YES

PCF7931

YES

YES

PCF7935

YES

YES

PCF7936

YES

YES Note 2

EML

YES

YES

MEGAMOS

YES

NO Note 1,3,5

TEMIC 11

YES

NO Note 1,5

TEMIC 12

YES

NO Note 1,5

T5

Note 4

YES



Note 1. Transponder is OTP (One Time Programable).

Note 2. Password Mode.

Note 3. Transponder can be emulated on PCF7935.

Note 4. Transponder can be read after its configuration (as Temic11-12, Megamos)

Note 5. Transponder can be copied (cloned) into T5 transponder


Key Makers

Alfa Romeo 1996 with 93C46 eeprom v.1 (Compatible also for Alfa Romeo 33)

Alfa Romeo 1999 with 93C46 eeprom v.2

Audi immobox 4A0953234 eeprom 93C46

BMW EWS1 immo

BMW EWS2 immo

BMW EWS3 immo

BMW



ALL IMMO MODELS:

Bmw-EWS1 immo

Bmw-EWS2 immo

Bmw-EWS3 immo

Bmw-EWS4 immo

Bmw-CAS (CAS1)

Bmw-CAS2

Bmw-CAS3

Citroen Evasion with eeprom 93C66

Dachia Supernova Sagem immobilizer

Daewoo Nexia

Daewoo Espero

Fiat Brava, MC68HC908AZ32

Fiat Bravo, eeprom 93C46.

Fiat Bravo, MC68HC705E6

Fiat Cinquecento, eeprom 93C46

Fiat Ducato, eeprom 93C46.

Fiat Palio, MC68HC705E6

Fiat Punto eeprom 93C46

Fiat Scudo, motorola

Ford Galaxy box-case immo TMS-based

Ford Galaxy box-case immo Motorola-based

Ford Probe 96-97

Honda Shuttle, eeprom 93C46

Honda Civic, eeprom 93C46

Honda Civic, eeprom 93C46 2003

Honda CRV eeprom 93C46

Mercedes Benz set for cars with transponder-type key.

Compatible to 129, 140, 210, S300 S320, S420, S500, E290, Vaneo, A-160, etc.



Supported immobilizers:

motorola maskset 0D53J

motorola maskset 0D69J

motorola maskset 0D66J

Mercedes ML-seria AAM-based

Mercedes ML-seria EAM-based

Mercedes Actros (93C86)

Mercedes Actros (93C66)

Mercedes Atego (93C86)

Mercedes Atego (93C66)

Mercedes Actros

Mercedes Sprinter

Mercedes Vito

Mitsubishi Carisma witth 93C46 eeprom

Nissan NATS-2 immo

Nissan NATS-4 immo

Opel Motorola based

Opel TMS based

Opel Movano 2000, eeprom 93C46

Opel Frontera, eeprom 93C46

Peugeot motorcycle Spedfight2 Motorola MC68HC05B8 based

Peugeot 306 (eeprom M95040)

Peugeot 406 (Valeo, eeprom 93C46)

Peugeot Boxer (eeprom 93C46)

Peugeot Partner (eeprom 93C46)

Peugeot Squab

Renault Clio (Sagem immobilizer, eeprom 93C46)

Renault Kangoo up to 2002 Sagem immo

Renault Laguna 1998, eeprom 93C46

Renault Master, eeprom 93C46

Renault Laguna 1998 Valeo immo

Rover 75

Seat Alhambra (7M0 953 257 F) Motorola maskset 3D33J

Subaru Legacy. Motorola maskset 0F10V

Subaru Impreza. Motorola maskset 3D33J

Subaru Outback. Motorola

Volvo 850 (eeprom 93C46)

Volvo V70 (eeprom 93C56)

Volvo V70 (eeprom 93C66)

VW box-case immo Motorola MC68HC05B6 based

VW box-case immo TMS-based

VW box-case immo 6x0 953 257



Image dump generators

Type 44

Audi A8 2003 2006

VW Touareg

VW Phaeton

BMW E60

BMW E64

BMW E65

BMW E87

Porsche Cayenne

Citroen Xsara Picasso 2000 2004

Citroen C3 2004

Peugeot 307 2004

Opel fixed code

Mitsubishi (PCF7936)



Pin calculator

EDC16 (eeprom 95320 / 25C320) and BoschMotronic (eeprom ST95P08)



List of car equipped with these ECUs:

AUDI A3, A4, A6, A8

VW Golf 4, Touran, Touareg, Phaeton, Caddy

SKODA Octavia II

SEAT Leon, Toledo

Honda Civic, eeprom 93C46

Honda Civic, eeprom 93C46 2003

Honda CRV eeprom 93C46

Mercedes Benz set for cars with transponder-type key.

Compatible to 129, 140, 210, S300 S320, S420, S500, E290, Vaneo, A-160, etc.



Supported immobilizers:

motorola maskset 0D53J

motorola maskset 0D69J

motorola maskset 0D66J

Mercedes ML-seria AAM-based

Mercedes ML-seria EAM-based

Mercedes Actros (93C86)

Mercedes Actros (93C66)

Mercedes Atego (93C86)

Mercedes Atego (93C66)

Mercedes Actros

Mercedes Sprinter

Mercedes Vito

Mitsubishi Carisma witth 93C46 eeprom

Nissan NATS-2 immo

Nissan NATS-4 immo

Opel Motorola based

Opel TMS based

Opel Movano 2000, eeprom 93C46

Opel Frontera, eeprom 93C46

Peugeot motorcycle Spedfight2 Motorola MC68HC05B8 based

Peugeot 306 (eeprom M95040)

Peugeot 406 (Valeo, eeprom 93C46)

Peugeot Boxer (eeprom 93C46)

Peugeot Partner (eeprom 93C46)

Peugeot Squab

Renault Clio (Sagem immobilizer, eeprom 93C46)

Renault Kangoo up to 2002 Sagem immo

Renault Laguna 1998, eeprom 93C46

Renault Master, eeprom 93C46

Renault Laguna 1998 Valeo immo

Rover 75

Seat Alhambra (7M0 953 257 F) Motorola maskset 3D33J

Subaru Legacy. Motorola maskset 0F10V

Subaru Impreza. Motorola maskset 3D33J

Subaru Outback. Motorola

Volvo 850 (eeprom 93C46)

Volvo V70 (eeprom 93C56)

Volvo V70 (eeprom 93C66)

VW box-case immo Motorola MC68HC05B6 based

VW box-case immo TMS-based

VW box-case immo 6x0 953 257



Image dump generators

Type 44

Audi A8 2003 2006

VW Touareg

VW Phaeton

BMW E60

BMW E64

BMW E65

BMW E87

Porsche Cayenne

Citroen Xsara Picasso 2000 2004

Citroen C3 2004

Peugeot 307 2004

Opel fixed code

Mitsubishi (PCF7936)



Pin calculator

EDC16 (eeprom 95320 / 25C320) and BoschMotronic (eeprom ST95P08)

List of car equipped with these ECUs:

AUDI A3, A4, A6, A8

VW Golf 4, Touran, Touareg, Phaeton, Caddy

SKODA Octavia II

SEAT Leon, Toledo
