2014 Newest DA-VINA 2534 Jaguar Land Rover Approved SAE J2534 Pass-Thru Interface

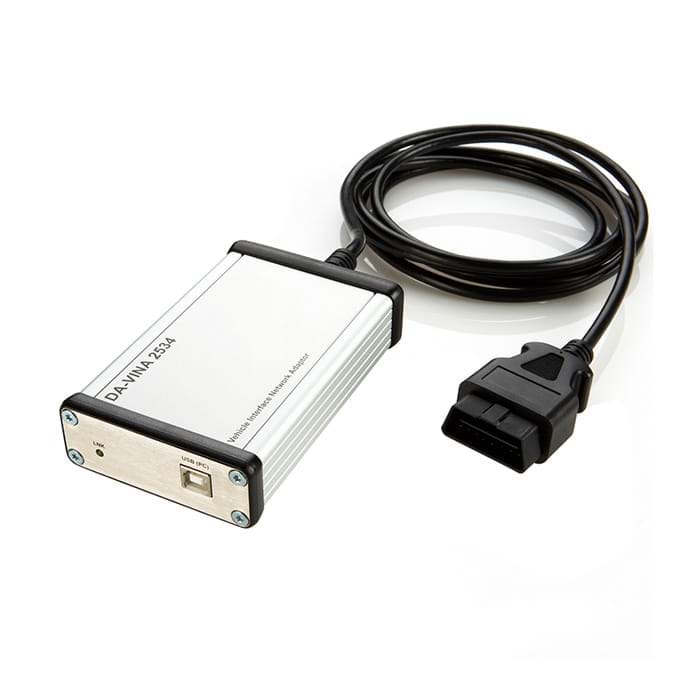

The DA-VINA 2534 is a high-performance pass-thru (SAE J2534) vehicle interface. This unit connects directly to the vehicle OBDII (Diagnostic) connector; it then connects to any laptop via a USB 2.0 cable. Once the J2534 Driver files are loaded, this product will allow normal operation with OEM compliant J2534 diagnostic applications. This device supports CAN, FT CAN, ISO and SCP (J1850) protocols.

Overview

* JLR Approved device

* Replacement for JLR SDD VCM

* Covers CAN, ISO9141, SCP Vehicle Networks

* Most cost effective Jaguar pass-thru VCI device

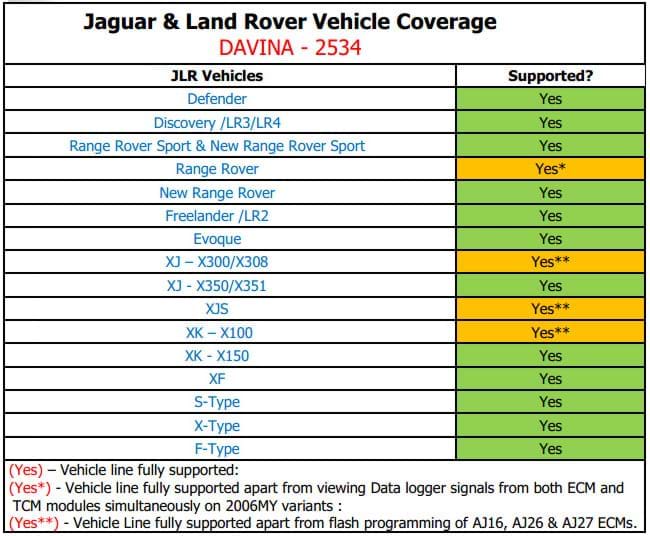

* Best Suited for Legacy, Current and Future Vehicles

* 12ft USB Cable as standard included

* Easy to update for J2534 new functionality updates

What does the DA-VINA 2534 do?

The DA-VINA 2534 connects directly to the vehicle OBDII (Diagnostic) connector, it then connects to the laptop via a USB cable for use with SDD. Once the J2534 DLL files are loaded, this product will allow normal operation with JLR SDD Diagnostic Tool. All communication is possible on with this device.

How does the DA-VINA operate in J2534 Mode?

The DA-VINA is simple and easy to use.

* Download the latest J2534 DLL software files from the Diagnostic Associates web site http://www.diagnostic-associates.com/download.htm  and install these on the SDD Laptop.

* Connect the J2534 device to the vehicle OBDII connector (the device powers from the vehicle).

* Connect the 12ft USB cable to the DA-VINA and the other end to the SDD Laptop.

* The (PWR) LED will turn solid red to show the DA-Dongle is powered.

* During communication with the vehicle the Status (STS) LED will flash green.

How does the DA-VINA get updated for future Software Updates?

The DA-DAVINA can be updated simply and easily by connecting the DA-DAVINA to a laptop/PC via the USB cable that is provided with each DA-DAVINA.

A PC software update application (DA App Hub) is available to download from the Diagnostic Associates website http://www.diagnostic-associates.com/download.htm. This application once downloaded and launched will be responsible for identifying what version of software is on the device, and whether a new version is available for update.

By connecting the device to the PC when the DA App Hub application is running, the application will read the device and connect over the internet to determine if an updated software is available and download this to the device if a newer version exists.  This process takes approximately 3 minutes to complete.  The device will then be updated and ready to be used on the vehicle.

Other JLR related products available.

* EPBR - Electronic Park Brake Release

* SIR - Service Interval Reset

* TM - Transport Mode toggle

* PDI - Pre-Delivery Inspection

* DTC - DTC clear tool (for non-warranty vehicles)

* J2534 - J2534 pass-through communications device for SDD VCM replacement

* DPFDR - DPF Dynamic Regeneration

* TTMT - Tight Tolerance Mode Toggle

* DA-ST512 - Multi Application Hand Held Device

Note: We don't offer software or Only cracked version of 137.02 version software. You can go to the official website: http://www.diagnostic-associates.com to update this tool.

Computer requirement: 4 nuclear WIN7 or XP 32-bit systems, More than 20GB of Hard Disk partition C.
